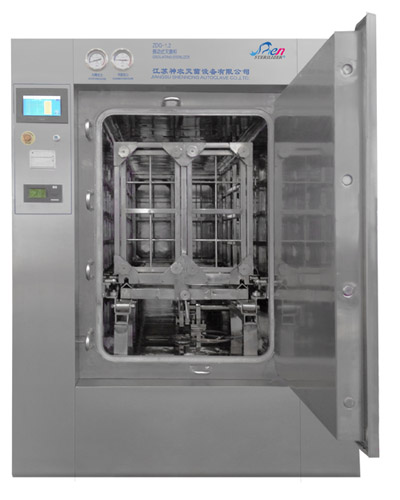

This machine is high technology integrative product, which can fully meet requirement of GMP.
It is mainly apply to sterilization for suspension and emulsion.During the whole process, the machine runs stably with good seal. The loading system moves backwards and forwards at a regular speed.
Our precise design and exquisite processing technology will provide your products with the best sterilizing results.
Size & Utilities
|
Model |
Overall Size L*W*H(mm) |
Chamber Size L*W*H(mm) |
Steam Consumption (kg/cycle) |
Tap Water (kg/cycle) |
Loading Cart (pcs) |
Power (KW) |
Net Weight (kg) |
|
ZDG-0.3 |
1195x1220x1720 |
1000x600x600 |
25 |
150 |
1 |
2.5 |
850 |
|
ZDG-0.6 |
1245x1300x1880 |
1050x680x850 |
30 |
200 |
1 |
2.5 |
1400 |
|
ZDG-1.2 |
1695x1370x1960 |
1500x750x1100 |
40 |
300 |
2 |
1.5 |
1850 |
|
ZDG-1.5 |
2015x1370x1960 |
1820x750x1100 |
80 |
350 |
2 |
2.0 |
2100 |
|
ZDG-2.0 |
2695x1370x1960 |
2500x750x1100 |
130 |
420 |
3 |
3.0 |
2500 |
|
ZDG-2.5 |
3195x1370x1960 |
3000x750x1100 |
180 |
470 |
3 |
3.0 |
3000 |
|
ZDG-5.0 |
3635x1800x2200 |
3400x1000x1500 |
350 |
650 |
4 |
4.5 |
4200 |
Structure & Capability & Characteristics
Vessels is designed to the China National Standard -GB150¡¶Steel Pressure Vessel¡·
National patent door interlock device.
National patent sealing technology- closed inflatable seal ring with compressed air.
Control system is integrated by PLC+ HMI, advanced function for recording,printing and storing.
The heat insulation layer is made by aluminium silicate.
The GMP validation port is provided for insertion of 16 temperature sensors for validation.
Independent temperature monitoring system
Stepless variable-frequency speed control
Main Parameters& Utilities
|
Design Pressure |
0.245Mpa |
Steam Pressure |
0.4-0.6Mpa |
|
Working Pressure |
0.22Mpa |
Water Pressure |
0.1-0.3Mpa |
|
Design Temperature |
139¡æ |
Compressed Air Pressure |
0.5-0.7Mpa |
|
Working Temperature |
60-134¡æ |
£¨Rotation Speed£© |
1-20rpm¡¡ |
|
Heat Equilibrium |
¡Ü¡À0.5¡æ |
|
|
