This series adopts cyclical water as sterukuzation heating heating carrier and carrier and carry and carry out water-pouring sterilizing operation for articals.
During the whole working course,superherheated water operates in a relatively sealing cyclical system,which has series of advanyages,high heat efficiency,good temperature evenness,stable temperature adjusting range,etc.Besides,this equipment also effectively,good temperature evenness.stable temperature adjusting range,etc.Besides,this equipment also effectively prevents second pollution during working with anti-pressure protection device.lt can be applied widely to high-and-low temperature sterilizing operation on liquid in glass bottles.Ampoule bottles,plastic bottles, plastic packs,etc,in pharmaceutics.it is also suitable for foodstuff industery to sterilize all kinds of sealing package,drinks,cans.
■ Main Parameters & Utilities
|
Design pressure |
0.245Mpa |
|
0.1-0.2Mpa |
|
|
0.22Mpa |
|
0.4-0.6Mpa |
|
|
139℃ |
|
0.1-0.3Mpa |
|
|
134℃ |
|
0.5-0.7Mpa |
|
|
≤±1℃ |
|
|

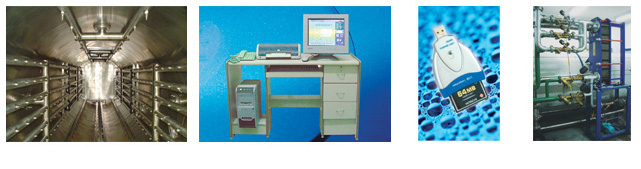

■ Structure&Capability&Characteristics
·The box is designed, produced and tested strictly according to the 《Steel Pressure Vessel》
·Pneumatic translational door,easy to operate,flexible
·Elegant stainless steel decorate cover
·The GMP confirrmation access is fixed on the equipment
·The unique dove-tail inlaid desigan of heat-resisting silicone rubber gasket ring ensures the seal tightness of the door.
·The main control system adopts micro-computer PLC＋touch screen ＋DCS long distance tiring-room monitoring system
·The heat preservation layer is made by polyurethane matirial and pearl rock wool
·Excellent PID temperature controlling technology,accurate pressure tracking on real-time
·In order to reduce the working load, the automatic in-out system can be fixed according to the customer’s needs.
■ Size&Utilities
|
Specifications
Model |
Overall Dimensions
L*M*H(mm)
Single/Double Door |
Chamber Size
L*W*H(mm) |
Sream Consumpyion
(kg/cycle) |
Power
(KW) |
Soft
Water
(kg/cycle)
|
Compressed Air
(m/cycle)
|
Car |
Cooling
Water consumpation |
|
|
SG-1.2 |
1820*2500*2000 |
1500*750*1100 |
80 |
5 |
100 |
2.0 |
2 |
2000 |
2150 |
|
SG-2.5 |
3320*2500*2000 |
3000*750*1100 |
130 |
5 |
200 |
4.0 |
4 |
4000 |
3100 |
|
SG-5 |
3780*3150*2250 |
3400*1000*1500 |
250 |
8 |
450 |
10.0 |
4 |
8500 |
5500 |
|
SG-13 |
4580*4000*2820 |
￠2000*4200 |
580 |
15 |
1000 |
25.0 |
4 |
9000 |
8500 |
|
SG-26 |
8580*4000*2820 |
￠2000*8200 |
1200 |
20 |
1500 |
45.0 |
8 |
16000 |
10500 |
|
SG-32 |
10580*4000*2820 |
￠2000*10200 |
1400 |
30 |
2000 |
45.0 |
10 |
20000 |
15000 |
|
SG-40 |
8740*5200*3220 |
￠2500*8360 |
1800 |
30 |
2500 |
55.0 |
16 |
24000 |
18500 |
|
SG-62 |
12820*5200*3220 |
￠2500*12440 |
2800 |
60 |
4000 |
90.0 |
24 |
40000 |
31000 |
Note:The overall dimensions,chamber size,and the quantity of sterilizing car are for glass bottle.And there is a bit difference for soft bag.
|
Load Model |
?Glass bottle |
Plastic bottle |
?Fot soft bag |
|
100ml |
250ml |
500ml |
100ml |
250ml |
500ml |
100ml |
250ml |
500ml |
|
SG-1.2 |
2016 |
990 |
544 |
1400 |
768 |
480 |
520 |
416 |
312 |
|
SG-2.5 |
4032 |
1980 |
1088 |
2800 |
1536 |
960 |
1040 |
832 |
624 |
|
SG-5 |
7868 |
3960 |
2160 |
5568 |
3260 |
2112 |
2160 |
1800 |
1400 |
|
SG-13 |
14400 |
7840 |
4536 |
10584 |
6120 |
4200 |
4320 |
3600 |
2160 |
|
SG-26 |
28800 |
15680 |
9072 |
21168 |
12240 |
8400 |
8640 |
7200 |
4320 |
|
SG-32 |
36000 |
19600 |
11340 |
26460 |
15300 |
10500 |
10800 |
9000 |
5400 |
|
SG-40 |
44800 |
24192 |
13248 |
32928 |
19584 |
12000 |
13440 |
11200 |
8960 |
|
SG-62 |
86400 |
47040 |
27216 |
63504 |
36720 |
25200 |
20160 |
16800 |
13440 |
Note:The loading above is just for reference ,the actual loading will be different because of the loading method and bottle sizes.
|
